MNIST手写数字识别：CNN实战与性能优化

fimport torch
from torchvision import datasets, transforms
from torch.utils.data import DataLoader
import matplotlib.pyplot as plt
import torch.nn as nn
import torch.optim as optim

# 设置随机种子，确保结果可复现
torch.manual_seed(42)

# 定义数据预处理：转换为张量并标准化
transform = transforms.Compose([
    transforms.ToTensor(),  # 将图像转换为 Tensor，范围 [0, 1]
    transforms.Normalize((0.1307,), (0.3081,))  # MNIST 数据集的均值和标准差
])

# 下载并加载训练集和测试集
train_dataset = datasets.MNIST('data', train=True, download=True, transform=transform)
test_dataset = datasets.MNIST('data', train=False, transform=transform)

# 创建数据加载器
train_loader = DataLoader(train_dataset, batch_size=64, shuffle=True)
test_loader = DataLoader(test_dataset, batch_size=1000)

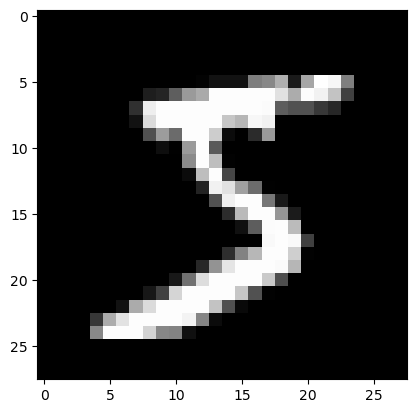

# 显示第一个训练样本的基本信息
first_img, first_label = train_dataset[0]
plt.imshow(first_img.squeeze(), cmap='grey')
print(f"\n第一个训练样本:")
print(f"  形状: {first_img.shape}")  # 输出: [1, 28, 28]
print(f"  标签: {first_label}")     # 输出: 0-9的数字

# 打印数据加载器基本信息
print(f"\n训练数据加载器:")
print(f"  批次大小: {train_loader.batch_size}")
print(f"  批次数: {len(train_loader)}")  # 总样本数/batch_size
print(f"  总样本数: {len(train_loader.dataset)}")

print(f"\n测试数据加载器:")
print(f"  批次大小: {test_loader.batch_size}")
print(f"  批次数: {len(test_loader)}")
print(f"  总样本数: {len(test_loader.dataset)}")

# 检查第一个训练批次的形状
first_batch = next(iter(train_loader))
batch_imgs, batch_labels = first_batch
print(f"\n第一个训练批次:")
print(f"  图像批次形状: {batch_imgs.shape}")
print(f"  标签批次形状: {batch_labels.shape}")

class SimpleCNN(nn.Module):
    def __init__(self):
        super(SimpleCNN, self).__init__()
        # 卷积层 1：输入通道=1（灰度图），输出通道=10，卷积核=5x5
        self.conv1 = nn.Conv2d(1, 10, kernel_size=5)
        # 卷积层 2：输入通道=10，输出通道=20，卷积核=5x5
        self.conv2 = nn.Conv2d(10, 20, kernel_size=5)
        # 丢弃层：防止过拟合
        self.conv2_drop = nn.Dropout2d()
        # 全连接层
        self.fc1 = nn.Linear(320, 50)  # 320 = 20x4x4
        self.fc2 = nn.Linear(50, 10)   # 10 个类别

    def forward(self, x):
        # 输入图像尺寸：28x28
        x = self.conv1(x)  # 输出尺寸：(28-5+1) = 24x24
        x = nn.functional.relu(x)  # ReLU 激活
        x = nn.functional.max_pool2d(x, 2)  # 最大池化，尺寸减半：12x12

        x = self.conv2(x)  # 输出尺寸：(12-5+1) = 8x8
        x = self.conv2_drop(x)
        x = nn.functional.relu(x)
        x = nn.functional.max_pool2d(x, 2)  # 尺寸减半：4x4

        x = x.view(-1, 320)  # 展平为一维向量
        x = self.fc1(x)
        x = nn.functional.relu(x)
        x = nn.functional.dropout(x, training=self.training)
        x = self.fc2(x)
        return x  # 输出对数概率

# 实例化模型
model = SimpleCNN()

batch_pred = model(batch_imgs)
print(f"模型批次预测: {batch_pred.size()}")

#训练配置
epochs = 10
lr = 0.01
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(model.parameters(), lr=lr)

# 将模型设置为训练模式（启用Dropout等训练专用特性）
model.train()

# 外层循环控制训练轮数
for epoch in range(1, epochs + 1):
    print(f"\nEpoch {epoch}/{epochs}:")

    # 内层循环遍历数据加载器中的每个批次
    for batch_idx, (data, target) in enumerate(train_loader):
        # 1. 梯度清零：防止梯度累积（PyTorch默认会累加梯度）
        optimizer.zero_grad()

        # 2. 前向传播：将批次数据输入模型，得到预测结果
        output = model(data)

        # 3. 计算损失：对比预测结果与真实标签的差异
        loss = criterion(output, target)

        # 4. 反向传播：计算梯度（自动微分）
        loss.backward()

        # 5. 参数更新：根据优化器策略调整模型权重
        optimizer.step()

        # 每100个批次打印一次训练进度，监控训练过程
        if batch_idx % 100 == 0:
            print(f"  批次 {batch_idx}/{len(train_loader)} - 损失: {loss.item():.6f}")

print("\n[训练完成]")

# 设置为评估模式（关闭Dropout等训练专用层）
model.eval()

# 禁用梯度计算（节省内存，加速推理）
with torch.no_grad(): # with torch.inference_mode():
    test_loss = 0
    correct = 0

    # 遍历测试集
    for data, target in test_loader:
        # 前向传播
        output = model(data)

        # 累加批次损失
        test_loss += criterion(output, target).item()

        # 获取预测结果（概率最大的类别）
        pred = output.argmax(dim=1, keepdim=True)

        # 统计正确预测的样本数
        correct += pred.eq(target.view_as(pred)).sum().item()

# 计算平均损失和准确率
test_loss /= len(test_loader.dataset)
accuracy = 100. * correct / len(test_loader.dataset)

# 打印评估结果
print(f"\n测试集评估结果:")
print(f"  平均损失: {test_loss:.4f}")
print(f"  准确率: {correct}/{len(test_loader.dataset)} ({accuracy:.2f}%)")

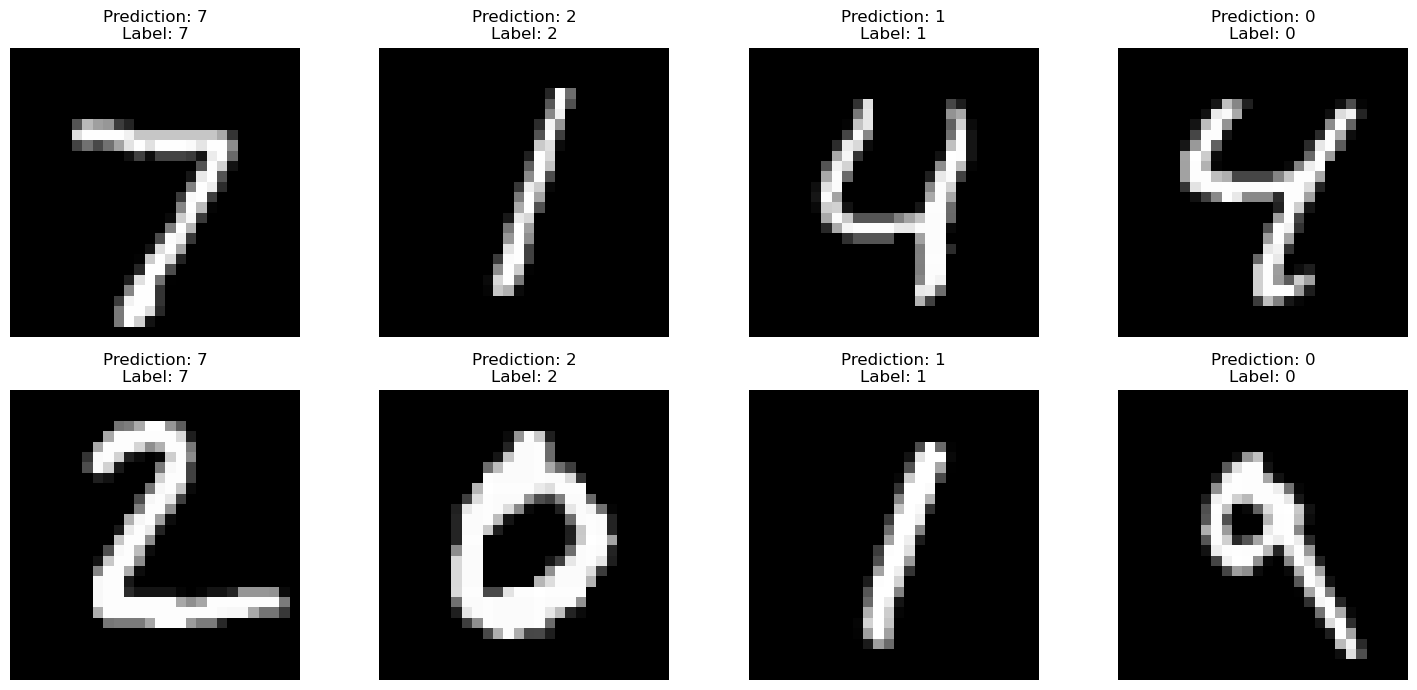

# ================ 可视化预测结果 ================
def visualize_predictions(model, num_samples=5):
    """可视化模型对测试集的预测结果"""
    model.eval()

    # 随机选择样本
    samples = next(iter(test_loader))
    data, target = samples[0][:num_samples], samples[1][:num_samples]

    # 获取预测结果
    with torch.no_grad():
        output = model(data)
        pred = output.argmax(dim=1)

    # 绘制图像与预测结果
    fig, axes = plt.subplots(2, num_samples//2, figsize=(15, 7))
    for i in range(num_samples//2):
        for j in range(2):
            # 恢复图像的原始形态（去标准化）
            img = data[i*2+j].squeeze().numpy()
            img = img * 0.3081 + 0.1307  # 反标准化

            # 显示图像与预测结果
            axes[j][i].imshow(img, cmap='gray')
            axes[j][i].set_title(f'Prediction: {pred[i]}\nLabel: {target[i]}')
            axes[j][i].axis('off')

    plt.tight_layout()
    plt.show()

# 可视化预测结果
visualize_predictions(model, num_samples=8)

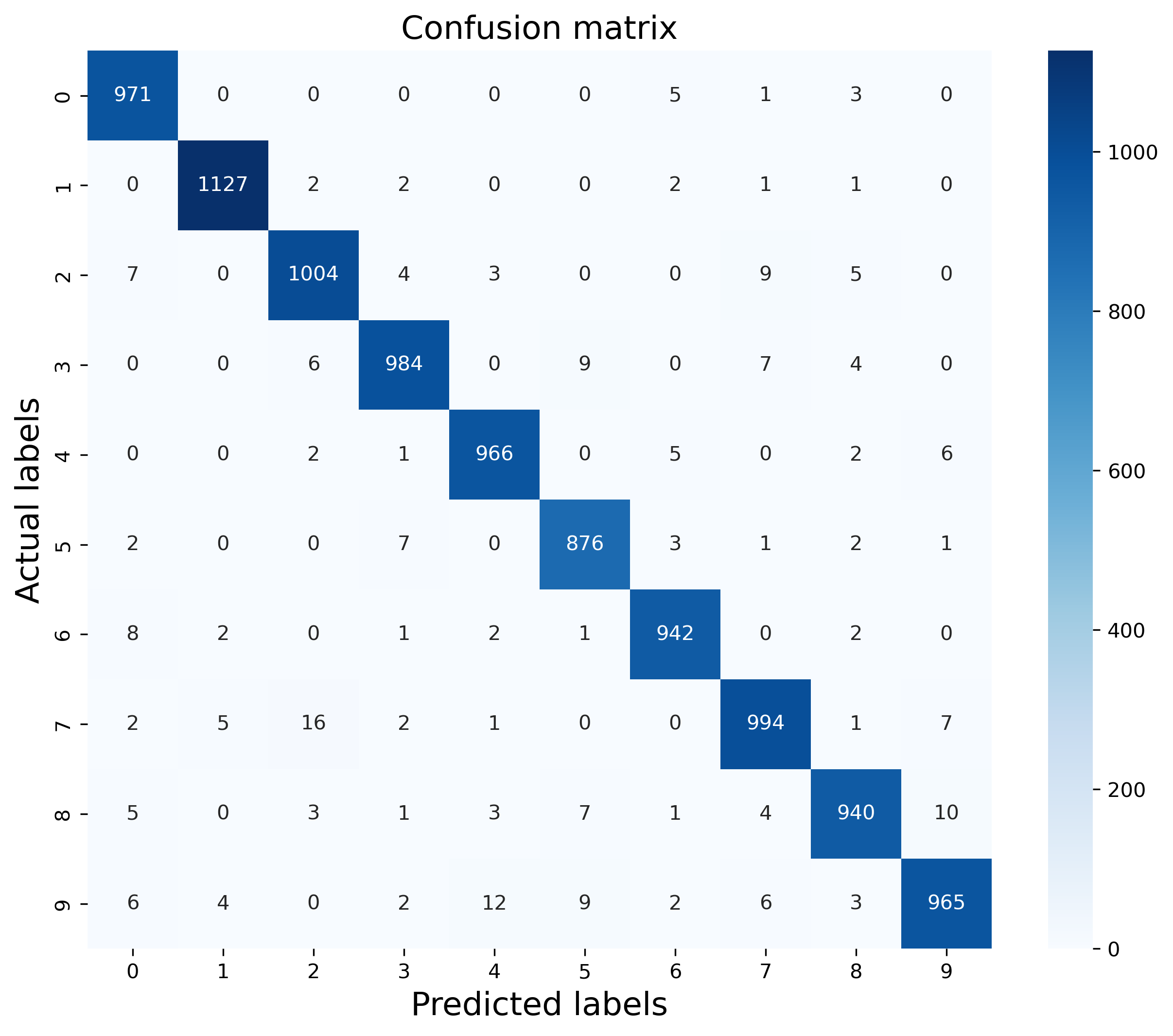

# ================ 混淆矩阵 ================
def plot_confusion_matrix(model):
    """绘制混淆矩阵，展示模型对每个类别的分类效果"""
    from sklearn.metrics import confusion_matrix
    import seaborn as sns

    model.eval()
    all_preds = []
    all_targets = []

    with torch.no_grad():
        for data, target in test_loader:
            output = model(data)
            preds = output.argmax(dim=1)
            all_preds.extend(preds.cpu().numpy())
            all_targets.extend(target.cpu().numpy())

    # 计算混淆矩阵
    cm = confusion_matrix(all_targets, all_preds)

    # 绘制热力图
    plt.figure(figsize=(10, 8), dpi=300)
    sns.heatmap(cm, annot=True, fmt='d', cmap='Blues',
                xticklabels=range(10), yticklabels=range(10))
    plt.xlabel('Predicted labels', fontsize=16)
    plt.ylabel('Actual labels', fontsize=16)
    plt.title('Confusion matrix', fontsize=16)
    plt.show()

plot_confusion_matrix(model)
